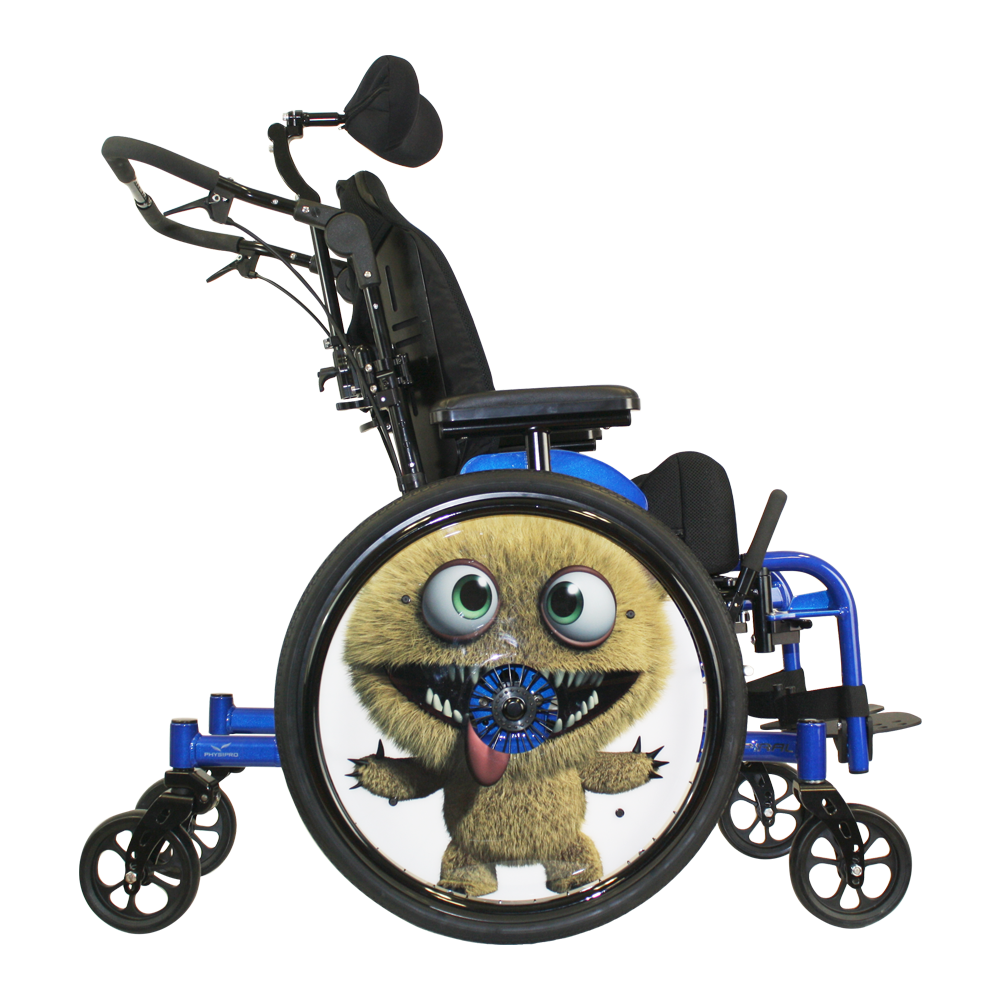

Moving in every direction with the Spiral!
The Spiral is the first six-wheel pediatric base available on the market. Its design promotes the autonomy of the child and allows a 45 degree tilt around the propulsion wheel.
First pediatric base with a six wheels configuration
The middle position of the propulsion wheel promotes the autonomy of the patient. This wheel position reduces the turning circle and makes the Spiral more stable and easier to propel while in a tilted position.
Rear casters tilt mechanism to overcome obstacles
By a simple press of the foot, the rear casters tilt to overcome obstacles and facilitate access of paratransit services.
Innovative tilt
The central pivot allows a 45° tilt around the propulsion wheels. This concept (patent pending) makes it
possible to keep the relative position of the armrests consistent with the wheels.
The result: an excellent propulsion position regardless of the tilt angle!
Evolutive frame that adapts to the child’s growth
The elongated, telescopic shapes in the Spiral frame are designed with precision. The slidable tubing allows a fast and accurate positioning. This two-frame base adapts specifically to the continuous growth of the child.
Folding backrest
The folding aspect of the backrest is very convenient for storing the Spiral inside the car. Lightweight and very easy to adjust, the backrest is adjustable in angle of
85 ° to 120 ° (by 5 ° increments).
Brakes always within reach
The design of the Spiral allows the brakes to follow the tilting angle of the chair. This feature improves the child’s safety by ensuring constant
access to the brakes, no matter how inclined he or she is.
Tie-down system
Includes four tie-down points integrated to the frame.
Protection against uncontrolled movements
An optional dynamic backrest offers protection from uncontrolled movement and helps reduce wheelchair damage. The dynamic backrest reduces pain caused by muscle spasms and facilitates their control. It promotes postural trunk control by allowing muscle stretching without restrictions.
Certified Transit Safety
The Spiral has gone through a dynamic crash test to ensure the safety and security of your child when seated in their wheelchair aboard a motor vehicle. The crash testing was conducted in accordance with RESNA WC 19 and ISO 7176-19 industry standards.
Available Colors
Technical Specifications
| Wheelchair Type | Pediatric Positionning Base | |
| Composition | Aluminium | |
| Back Height | 14″ to 23″ | |
| Seat Depth | 10″ to 16″ (10″ and 11″ are available with moved forward backrest anchors) | |
| Seat Width | 10″ to 16″ | |
| Seat-to-Floor Height | 14″ to 19″ | |
| Overall Length | 40″ | |
| Overall Width | Seat Width + 8 3/4″ | |
| Casters Diameter | 5″, 6″ | |
| Wheels Diameter | 20″, 22″ | |
| Transport Weight* | 35 lb (15,9 kg) | |
| Device Weight | 50 lb (22,7 kg) | |
| Maximum Charge | 150 lb (68 kg) | |
| Backrest Angle | 85° to 120° | |
| Tilt | 0° to 45° | |
| Armrests | Type « T » 7″ ½ to 11 ½″ | |
| Footrests | 60°, 70°, 90° | |
| Elevating Legrests | 14″ to 19″ | |
| One Piece Footplate | ||
| Angle Adjustable Stroller Bar | ||
| Rear Casters Tilt Mechanism | ||
| Dynamic Rear Casters Forks | ||
| Folding Forward Backrest | ||
| Quick Release Axles | ||
| Transit Anchors Integrated | ||
